Tanktermometer

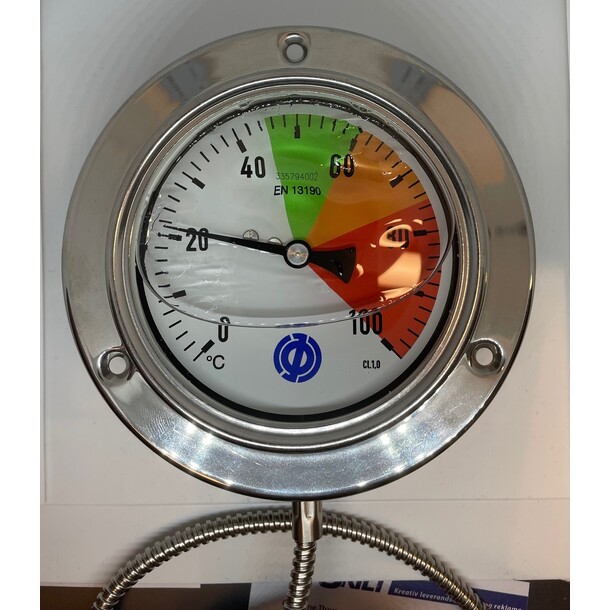

Thermometer : TXC100LD, bottom capillary entry

• Case : 100mm
• Mounting : 3 Hole front flange, flush panel mount
• Case Material : Stainless steel 304
• Window : Instrument glass
• Case filling : Glycerine
• Range 2 x : 0 - 100 °C
• Accuracy : Class 1,0%
• Dial markings : 45 - 60ºC with GREEN coloured zone (pizza punt)
• Specifications 0 : 60 - 75 ºC with ORANGE coloured zone (pizza punt)
• Specifications 1 : 75 - 100 ºC with RED coloured zone (pizza punt)
• Logo : O J
• Capillary length 2 x : 1.200 mm
• Armour material : Stainless steel 304
• Stem diameter : Stem diameter to suit below pocket
• Stem Length : Length to suit below pocket
• Connection size : 1/2"BSP
• Connection type : A04, Rotating male nipple
• Pocket diameter : ø 15 mm
• Pocket length : 100 mm Ls= 35mm
• Pocket model : Welded pocket, model 05, weld in type
• Process connection : INLAS type glat ø 18mm
