A00+E00+H03+L31+U04

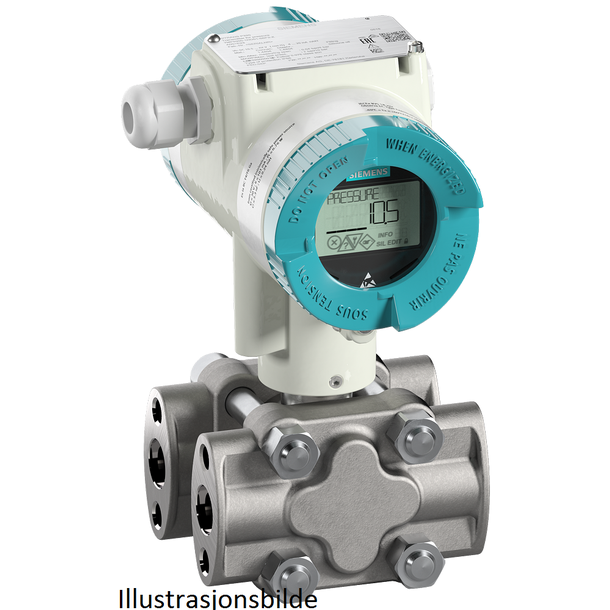

SITRANS P320 Differential Pressure
PN160 HART (4...20 mA)
Measuring cell filling: Silicone oil
Maximum measuring span: 5000 mbar
Oval flange, fastening thread: M10 (PN160),
M12 (PN420) Diaphragm: Stainless steel 316L/1.4404
measuring cell: Stainless steel 316L/1.4404
Sensor Differential pressure
process flange: Stainless steel 316/1.4408
Die-cast aluminum housing Dual chamber device
With display (lid with glass window)
Mounting bracket, stainless steel 1.4404/316L
Customer specific version
L31 with mounted manifold (5-fold) 7MF9411-5CA
PTFE sealings, stainless steel screws and pressure test,
