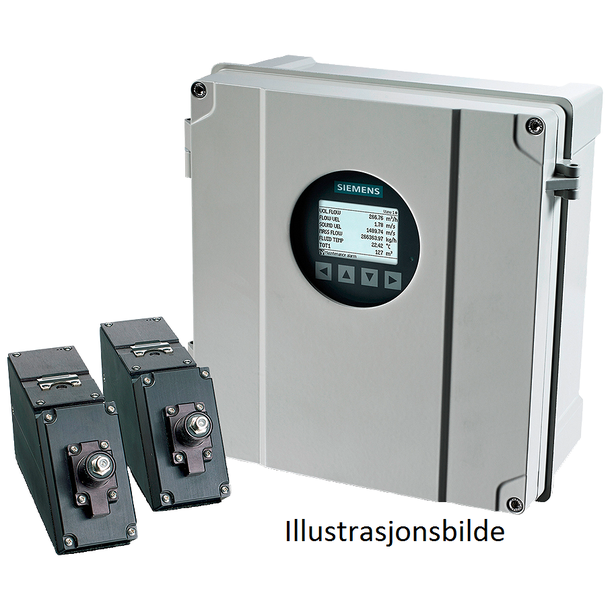

7ME39505GK21 (FSS200, HP-B1HC-T2, Liquid/Gas) for gas/liquid on steel /stainless steel pipes

Transmitter FST030

Outer pipe diameter >76 - 127 mm (3.0 - 5.0 in)

Pipe wall thickness >2.0 - 3.0 mm (0.08 - 0.12 in)

Frames/tracks (aluminum) includes straps (frames and spacer-bar on pipes bigger 125 mm)

Single Path (one sensor pair)

Wall mount enclosure with internal DSL-modul, aluminum - epoxy coated IP 67, NEMA 4X, internal universal power supply 24 - 240 V DC/AC (50 / 60Hz), for 1 - 2 path 9 cable entries M20x1.5 thread

ATEX: Sensors + external DSL Zone 0, 1 , 2; Wall mount enclosure Zone 2

Illuminated display sensor keys

B11: Standard Industry application (Liquids, e.g. water)

E06: HART, 4-20mA, Ex active

F21: Channel 2: Ex, activ Current/Freq./Pulse

K28: Sensor cable set 1-pair to external DSL / transmitter, Coax cable submersible, 5 m (16.4 ft), with F-connector, shortenable, terminated on one end side, incl. cable gland Nickel Plated Brass M20 x1.5, gland sensor plastic, F-connector

S30: Enable Mass storage device function for SD-card by USB
