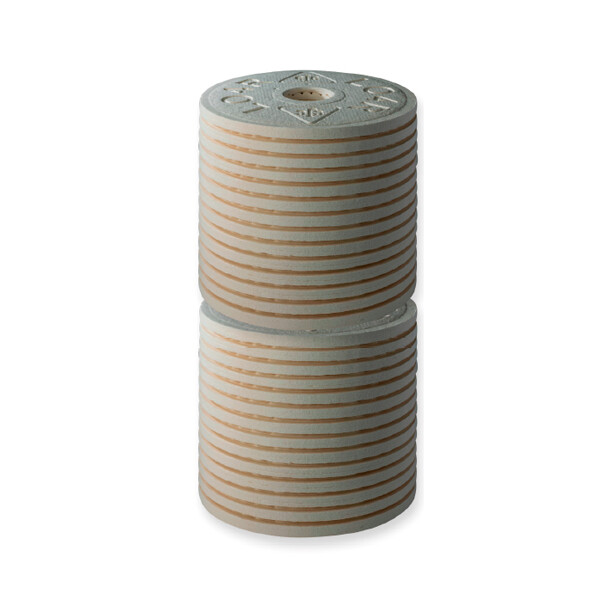

CJC® LO4D filter insert

Specially designed for lube oil on 4-stroke diesel engines operating on gas or light fuels

The CJC® LO4D Filter Insert is specially designed for cleaning conventional crankcase lubricants on 4-stroke diesel engines burning gas or light fuels.
The CJC® LO4D Filter Insert is ideal for filtration of SAE30 and SAE40 lubricating oil  - replacing the traditional centrifugal separator.

Compatible for engines operating on:

• Marine Gas Oil (MGO)
• Marine Diesel Oil (MDO)
• LNG
• BioFuel
• Hydrogen
• E-fuels

Contamination Capacities
The CJC® LO4D Filter Insert has well balanced dirt holding capacity and high filtration efficiency for optimum control of the contamination level, removing:

• Combustion contaminants
• Wear particles
• Oil degradation products
• Asphaltenes
• Water

Frequency controlled flow up to 250 l/h per filter insert make CJC® LO filters as compact as a centrifuge. The CJC® LO4D is designed especially for engine lube oil and gives superior results; very fine filtration, increased oil life and long filter insert life. Better filtration than a centrifugal separator, and much lower oil and operation cost. Comprehensive field experience has proven a very long filter insert service life as well as extended lube oil services, keeping the level of insolubles below engine maker recommendations.

This specific CJC® LO4D Filter Insert is applicable ONLY with below CJC® Oil Filters:

• CJC® Lube Oil Filter for 4-stroke
  medium & high speed trunk diesel engines

• CJC® Lube Oil Purifier 27
  for 2- & 4-stroke diesel engines

• CJC® Lube Oil Purifier 427
  for 2- & 4-stroke diesel engines

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

• The CJC® Filter Insert features:
  • Depth media of moulded cellulose
  • Highest Contamination Capacities (DHC)
  • 100% natural cellulose fibres from sustainable resources;
    no plastic, no metal, no chemical

• Removal of contaminants, 4-in-1:
  • Particles:
    Lifetime of both oil and component are increased considerably.
  • Oil degradation products:
    Avoid sticking valves, lacquering, and varnish on metal surfaces.
  • Water:
    Reduce the risk of micro-pitting, bacterial growth, sludge etc.
  • Acidity/TAN:
    Reduce oil ageing and wear on equipment.

• OEM requirements
  Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil!

HS-code: 4812 0000

Country of origin: Denmark
